11 Grease

11

Order Today

U

11 Grease is a top-tier perfluoropolyether lubricant optimized for turbomolecular pump bearings, highlighted by its off-white color and smooth texture. Crafted specifically for high-demand vacuum environments, it showcases unparalleled thermal stability with a decomposition temperature above 375°C. Its ultra-low volatility and minimal outgassing make it the go-to choice for advanced turbomolecular pump applications

  • Turbomolecular pump bearings

  • Semiconductor manufacturing equipment

  • High-vacuum systems

  • Laboratory analytical instruments

  • Cryogenic assemblies

  • Chemical processing units

  • Optimized for turbomolecular pumps, ensuring seamless operation.

  • Superior thermooxidative stability, lasting >120 minutes at 250°C.

  • Maintains impressive viscosity, with 71,865 mPa·s at 25°C.

  • Resilient in high heat, withstanding up to 379°C with only 5% mass loss.

  • Unparalleled wear resistance, showcasing a mere 0.46 mm wear scar.

  • Exceptional bearing performance, enduring >1500 cycles at 204°C.


1

Extended Bearing Test

1500

cycles

0°C

204°C

High Thermal Stabilty

Able to withstand up to 379°C before 5% mass loss

Oxidation Stabilty

120 min at 250°C

Four Ball Wear

.46mm

Apparent Viscosity

71,865 at

 1.4 mPa.s at 25°C

Superior SOT Cycles

500,000

Cycles

 High Temperature Purity Vacuum Grease

Perfluoropolyether Grease PTFE Thickener

High Temperature

1

-20°C

Temperature Range

325°C

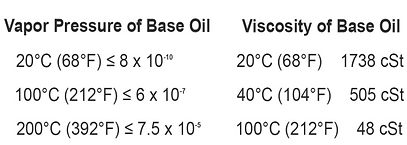

Vapor Pressure

Screenshot 2023-07-11 at 3.42.42 PM.png

Oil Viscosity

20°C (68°F) 1738 cSt

40°C (104°F) 505 cSt

40°C (212°F)   48 cSt

Oil Pour Point

-26°C (-15°F)

Oil Viscosity Index

149

U

TorrLube Purity Grease, a translucent white and buttery high vacuum grease, is crafted using advanced polytetrafluoroethylene. Infused with the renowned TLC 10 high vacuum, high-temperature oil, it's characterized by ultra-low outgassing, vast temperature suitability, and superior lubrication. Being chemically inert, non-toxic, and nonflammable, it stands out as an ideal choice for diverse chemical interactions

  • High-Temperature Systems

  • Semiconductor Manufacturing

  • Fine Mechanical Devices

  • O-Ring Conditioning

  • Rolling Element Bearings

  • Oxygen Systems

  • Offers ultra-low outgassing for optimal vacuum performance.

  • Ensures consistent lubrication across extreme temperatures.

  • Provides superior chemical resistance in diverse environments.

  • Delivers unmatched anti-wear properties for extended bearing life.

Linear Purity Vacuum Grease


1

-65°C

Temperature Range

300°C

Vapor Pressure

200°C (392°F) 3.4 x 10

-8

225°C (392°F) 3.8 x 10

-8

250°C (392°F) 5.2 x 10

-7

Viscosity Index

360

Wear Scar

1.49mm

Oil Pour Point

-75°C (-103°F)

U

TorrLube Linear Purity Grease is a state-of-the-art linear vacuum grease derived from advanced fluorine synthesis. Translucent white and buttery, it combines high-temperature oil with top-grade polytetrafluoroethylene (PTFE) for ultra-low outgassing, wide temperature adaptability, and excellent lubrication. Being chemically inert and non-toxic, it's perfect for diverse materials and chemical interactions

  • High Vacuum Systems

  • High-Temperature Operations

  • Semiconductor Manufacturing

  • O-Ring Conditioning

  • Fine Mechanical Devices

  • Rolling Element Bearings

  • Ultra-low outgassing ensures optimal vacuum integrity.

  • Unparalleled temperature resilience from -65°C to 300°C.

  • Advanced formulation combats "Brown Sugar" degradation.

  • Enhanced anti-wear properties for prolonged bearing lifespan

Linear Purity

Perfluoropolyether Grease PTFE Thickener

Extreme Vacuum Grease

Extreme

U

TorrLube ExtremeGrease is a high vacuum grease that stands out due to its chemical inertness, safety, and smooth consistency for an NLGI #2 grease. Exhibiting a translucent white hue and a buttery texture, it merges the esteemed TLC 10 high vacuum, high-temperature oil with a high heat, advanced lubricating PTFE. This combination culminates in a grease characterized by ultra-low outgassing, resilience to extreme temperatures, and unmatched lubrication

  • High-Temperature Systems

  • Semiconductor Manufacturing

  • Fine Mechanical Devices

  • O-Ring Conditioning

  • Rolling Element Bearings

  • Fuel and Oxidizer Environments

  • Achieves peak vacuum efficiency with minimal gas release.

  • Guarantees stable lubrication, even in the harshest thermal conditions.

  • Resists the toughest chemicals, ensuring prolonged component safety.

  • Enhances rolling bearing longevity with advanced anti-wear formulation

1

-20°C

Temperature Range

325°C

Vapor Pressure

Screenshot 2023-07-11 at 3.42.42 PM.png

Oil Viscosity

20°C (68°F) 1738 cSt

40°C (104°F) 505 cSt

40°C (212°F)   48 cSt

Oil Pour Point

-26°C (-15°F)

Oil Viscosity Index

149

Perfluoropolyether Grease PTFE Thickener

PzH High Speed Grease

PzH High Speed

1

-20°C

Temperature Range

325°C

Base Type & Thickner

Synthetic Hydrocarbon Lithium Complex

NLGI Grade

3

Dropping Point

>260°C (>500°F)

Base Oil Pour Point

>-40°C (-40°F)

Wear Scar

.49mm

U

PzH grease is a high-speed, grade 3 Lithium Complex Hydrocarbon solution, designed as a successor to the renowned Andok C. With its amber hue and buttery feel, PzH is recognized for its exceptional channeling characteristics and is optimized for vacuum environments that require a silent, no-rumble grease

  • High-speed spindle bearings

  • Vacuum chamber seals

  • Precision instrument lubrication

  • Aerospace equipment joints

  • Semiconductor machinery components

  • Electron microscopy adjustments

  • Boasts an impressive dropping point of >260°C.

  • Exhibits minimal oil separation (1.90%) and evaporation (0.40%) at 100°C.

  • Demonstrates superior wear protection, with a wear scar of just 0.49 mm.

  • Maintains unparalleled thermooxidative stability with no reaction under testing conditions

Hydrocarbon Grease Lithium Complex Thickener

Sh2 Lithium Complex Hydrocarbon Grease

Sh2
SH2-50ccRBlueTip-ForWeb (1).jpg

U

TorrLube SH2 is a premium synthetic hydrocarbon grease with a lithium complex thickener, characterized by its tan color and smooth texture. Specifically formulated for robust tribological needs, it boasts an impressive dropping point of over 260°C and ensures minimal oil separation and evaporation at high temperatures

  • Rolling element bearings

  • Aircraft instrumentation

  • Automotive systems

  • High-precision machinery

  • Spacecraft components

  • Corrosive environments

  • Resists oxidation for up to 51.7 minutes at 210°C.

  • Maintains 5606 g-cm torque at a chilly -54°C start.

  • Offers remarkable wear prevention, registering a 0.419 mm wear scar.

  • Zero water washout at 40°C, ensuring uninterrupted lubrication

1

-54°C

Temperature Range

150°C

Base Type & Thickner

Synthetic Hydrocarbon Lithium Complex

Dropping Point

>260°C (>500°F)

Oxidation Stabilty

51.2 min at 210°C (410°F)

Apparent Viscosity

3.3 x 10 mPa.s

6

Wear Scar

.419mm

Hydrocarbon Grease Lithium Complex Thickener

1. All product properties displayed are solely based on historical data and have not been individually tested. It is important to note that these values are not data specifications and should not be relied upon as such. Users are advised to conduct their own testing and validation to ensure the suitability of the products for their specific applications. TorrLube makes no warranties, expressed or implied, regarding the accuracy or completeness of this information

2. The application recommendations provided are based on historical insights and are not the result of individual product assessments. It's essential to note that these suggestions are not fixed specifications and should not be depended upon as such. We strongly urge users to conduct their own in-depth evaluations, including relevant testing, to ascertain the compatibility and appropriateness of the products for their distinct applications. TorrLube does not offer any guarantees, either explicit or implied, regarding the accuracy or completeness of the information shared. Furthermore, statements concerning the potential use of our products are not meant to be construed as endorsements to utilize our products in violation of any patents
